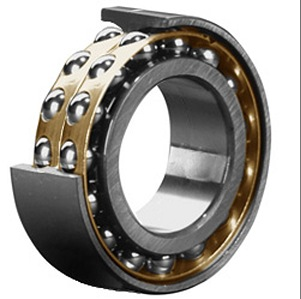

3316-DA-MA - burchakli kontaktli rulman

Suffiks ma'nosi:
DA:Bo'lingan ichki halqali ikki qatorli rulmanli;MA:Qayta ishlangan guruch qafas va tashqi halqa boshqariladi.

Ikki qatorli; Ichki diametri: 80 mm; Tashqi diametri: 170 mm; Balandligi: 68,30 mm Og'irligi: 7,50 kg.

product-1584-800

O'lcham va texnik xususiyatlar
Asosiy o'lchamlar (d * D * b)	80 * 170 * 68,3 mm
Teshik diametri-d	80 mm
Tashqi diametri - D	170 mm
Kengligi ichki halqa-B	68,3 mm
Og'irligi	7,5 kg
Elkaning diametri tashqi halqasi D1	149,90 mm
Aloqa burchagi	45 daraja
Yelkaning diametri ichki halqasi d1	118,70 mm
Pasning minimal o'lchami rmin	2,10 mm
Bosim konuslarining cho'qqilari orasidagi masofa a	159 mm
Maksimal fileto radiusi ra max	2,10 mm
Minimal diametri mil yelka da min	92 mm
Korpus yelkasining maksimal diametri Da maks	158 mm
Asosiy dinamik yuk ko'rsatkichi, radial Cr	192,000 N
Charchoq yuk chegarasi, radial Cur	9,900 N
Malumot tezligi nr	3,900 1/daq
Tezlikni cheklash nG	5,400 1/daq

Barcha ikki qatorli burchakli kontaktli rulmanlar inventar jadvali. Katta zaxirada 3-4 kun yetkazib beriladi

Rulman raqami	Hajmi (mm)
3200 A-2ZTN9/MT33	10x30x14
3200 ATN9	10x30x14
3200 A-2RS1TN9/MT33	10x30x14
3201 A-2ZTN9/MT33	12x32x15.9
3201 ATN9	12x32x15.9
3201 A-2RS1TN9/MT33	12x32x15.9
3202 A-2ZTN9/MT33	15x35x15.9
3202 ATN9	15x35x15.9
3202 A-2RS1TN9/MT33	15x35x15.9
3302 A-2Z	15x42x19
3302 A-2ZTN9/MT33	15x42x19
3302 ATN9	15x42x19
3302 A-2RS1	15x42x19
3302 A-2RS1TN9/MT33	15x42x19
3203 A-2ZTN9/MT33	17x40x17.5
3203 ATN9	17x40x17.5
3203 A-2RS1TN9/MT33	17x40x17.5
3303 A-2Z	17x47x22.2
3303 A-2ZTN9/MT33	17x47x22.2
3303 ATN9	17x47x22.2
3303 A-2RS1	17x47x22.2
3303 A-2RS1TN9/MT33	17x47x22.2
3204 A	20x47x20.6
3204 A-2Z	20x47x20.6
3204 A-2ZTN9/MT33	20x47x20.6
3204 ATN9	20x47x20.6
3204 A-2RS1	20x47x20.6
3204 A-2RS1TN9/MT33	20x47x20.6
3304 A	20x52x22.2
3304 A-2Z	20x52x22.2
3304 A-2ZTN9/MT33	20x52x22.2
3304 ATN9	20x52x22.2
3304 A-2RS1	20x52x22.2
3304 A-2RS1TN9/MT33	20x52x22.2
3205 A	25x52x20.6
3205 A-2Z	25x52x20.6
3205 A-2ZTN9/MT33	25x52x20.6
3205 A-2RS1	25x52x20.6
3205 A-2RS1TN9/MT33	25x52x20.6
3305 A	25x62x25.4
3305 A-2Z	25x62x25.4
3305 A-2ZTN9/MT33	25x62x25.4
3305 ATN9	25x62x25.4
3305 A-2RS1	25x62x25.4
3305 A-2RS1TN9/MT33	25x62x25.4
3206 A	30x62x23.8
3206 A-2Z	30x62x23.8
3206 A-2ZTN9/MT33	30x62x23.8
3206 ATN9	30x62x23.8
3206 A-2RS1	30x62x23.8
3206 A-2RS1TN9/MT33	30x62x23.8
3306 A	30x72x30.2
3306 A-2Z	30x72x30.2
3306 A-2ZTN9/MT33	30x72x30.2
3306 ATN9	30x72x30.2
3306 A-2RS1	30x72x30.2
3306 A-2RS1TN9/MT33	30x72x30.2
3207 A	35x72x27
3207 A-2Z	35x72x27
3207 A-2ZTN9/MT33	35x72x27
3207 ATN9	35x72x27
3207 A-2RS1	35x72x27
3207 A-2RS1TN9/MT33	35x72x27
3307 DJ1	35x80x34.9
3307 A	35x80x34.9
3307 A-2Z	35x80x34.9
3307 A-2ZTN9/MT33	35x80x34.9
3307 ATN9	35x80x34.9
3307 A-2RS1	35x80x34.9
3307 A-2RS1TN9/MT33	35x80x34.9
3208 A	40x80x30.2
3208 A-2Z	40x80x30.2
3208 A-2ZTN9/MT33	40x80x30.2
3208 ATN9	40x80x30.2
3208 A-2RS1	40x80x30.2
3208 A-2RS1TN9/MT33	40x80x30.2
3308 DNRCBM	40x90x36.5
3308 A	40x90x36.5
3308 A-2Z	40x90x36.5
3308 A-2ZTN9/MT33	40x90x36.5
3308 ATN9	40x90x36.5
3308 A-2RS1	40x90x36.5
3308 A-2RS1TN9/MT33	40x90x36.5
3308 DMA	40x90x36.5
3308 DTN9	40x90x36.5
3209 A	45x85x30.2
3209 A-2Z	45x85x30.2
3209 A-2ZTN9/MT33	45x85x30.2
3209 ATN9	45x85x30.2
3209 A-2RS1	45x85x30.2
3209 A-2RS1TN9/MT33	45x85x30.2
3309 DNRCBM	45x100x39.7
3309 A	45x100x39.7
3309 A-2Z	45x100x39.7
3309 ATN9	45x100x39.7
3309 A-2RS1	45x100x39.7
3309 DMA	45x100x39.7
3210 A	50x90x30.2
3210 A-2Z	50x90x30.2
3210 A-2ZTN9/MT33	50x90x30.2
3210 ATN9	50x90x30.2
3210 A-2RS1	50x90x30.2
3210 A-2RS1TN9/MT33	50x90x30.2
3310 DNRCBM	50x110x44.4
3310 DMA	50x110x44.4
3310 A	50x110x44.4
3310 A-2Z	50x110x44.4
3310 ATN9	50x110x44.4
3310 A-2RS1	50x110x44.4
3211 A	55x100x33.3
3211 A-2Z	55x100x33.3
3211 ATN9	55x100x33.3
3211 A-2RS1	55x100x33.3
3311 DNRCBM	55x120x49.2
